WIN-PIHAT-QCTL_EC200-4G-ESIM-V1.0

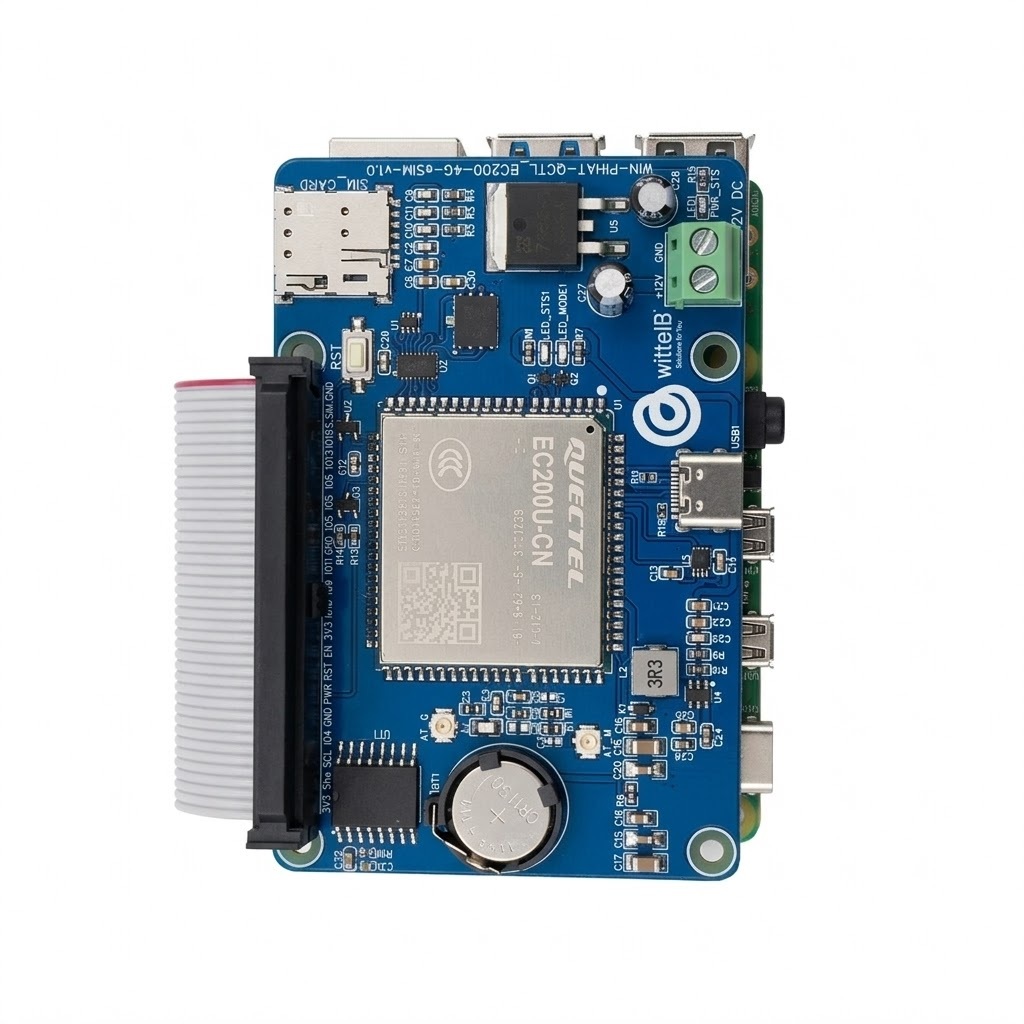

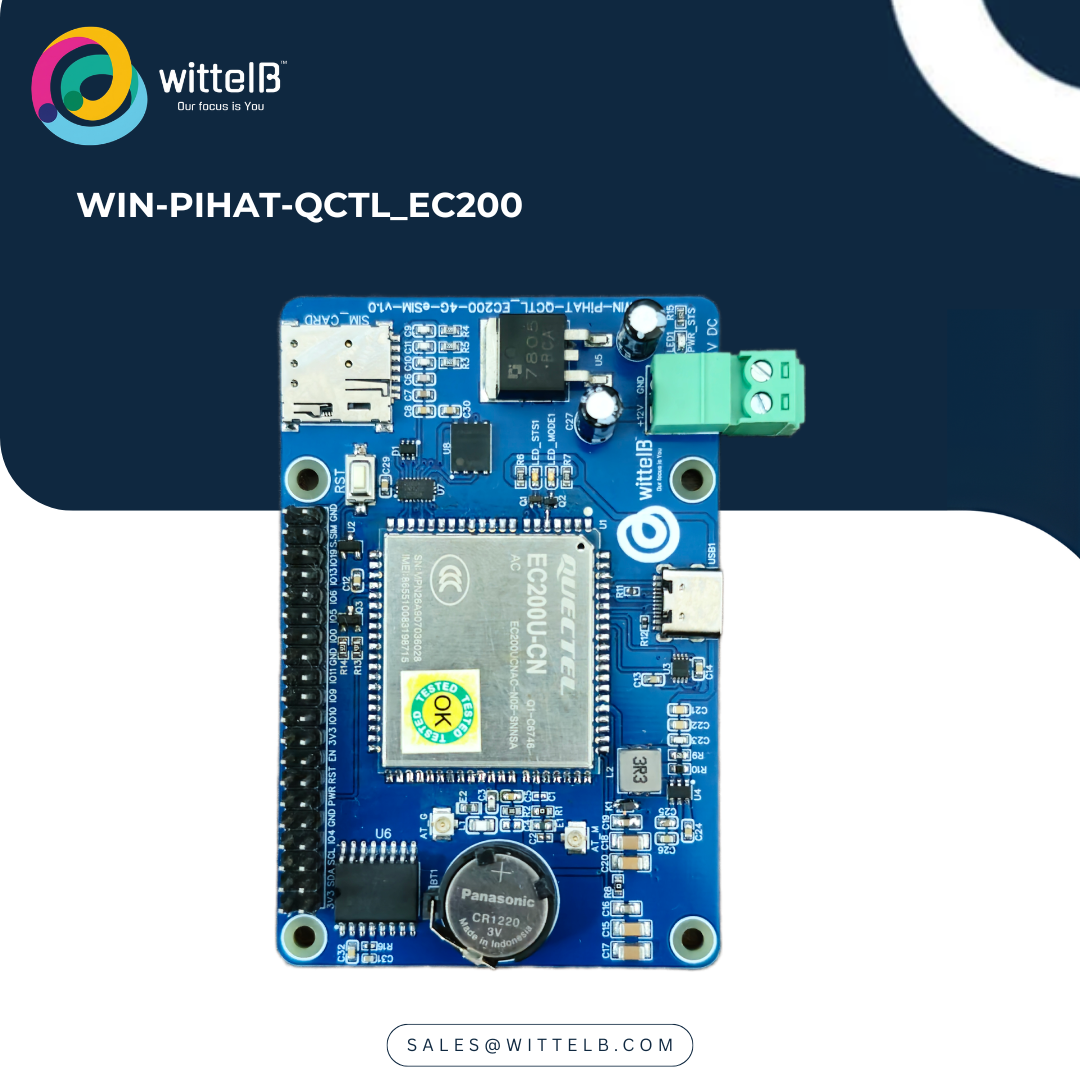

WIN-PIHAT-QCTL_EC200: 4G LTE & GNSS Expansion Board

The WIN-PIHAT-QCTL_EC200 is a high-performance cellular expansion board designed for the Raspberry Pi. Built around the Quectel EC200 LTE Cat 1 module, it provides a robust solution for 4G data transmission, SMS, and high-precision global tracking via an integrated GNSS engine.

Key Features

Dual SIM Connectivity: Integrated support for both Physical Nano-SIM and onboard eSIM for flexible network management.
Precision Tracking: Dedicated hardware support for GPS and GLONASS.
Advanced Timekeeping: Features an onboard Real-Time Clock (RTC) with battery backup for offline timestamping.
High-Speed Interfacing: Supports data transfer and AT commands via USB Type-C and standard UART.
Industrial Protection: Wide input power range (12/24V DC) with dedicated power management to handle peak currents up to 2.0A.

Technical Specifications

Category	Specification
Cellular Module	Quectel EC200 (LTE Cat 1)
Network	4G LTE Data & SMS
Navigation	GNSS (GPS/GLONASS)
Power Input	12V / 24V DC (External Supply Required)
Operating Temp	0°C to 60°C
Interfaces	40-Pin GPIO, USB Type-C, UART
