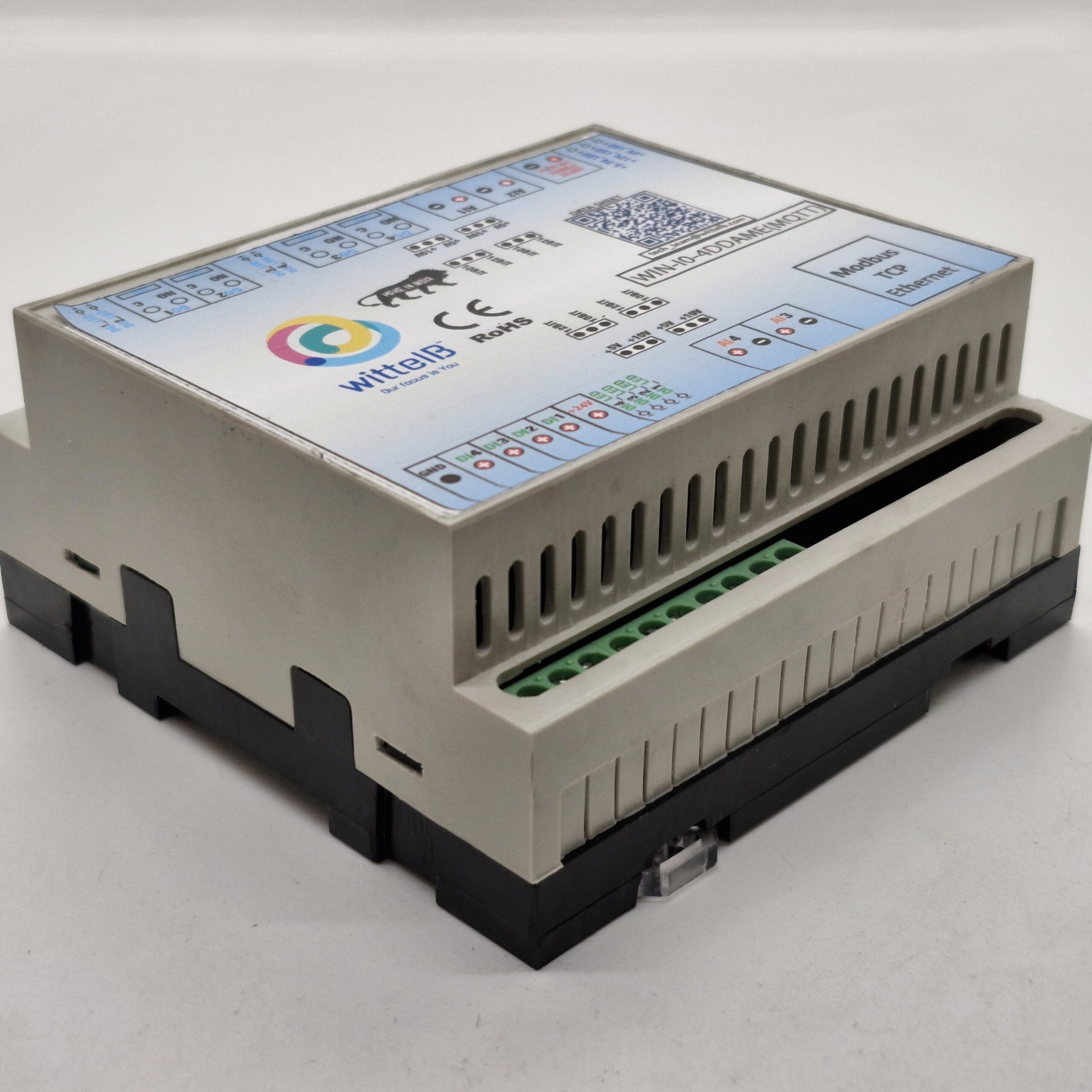

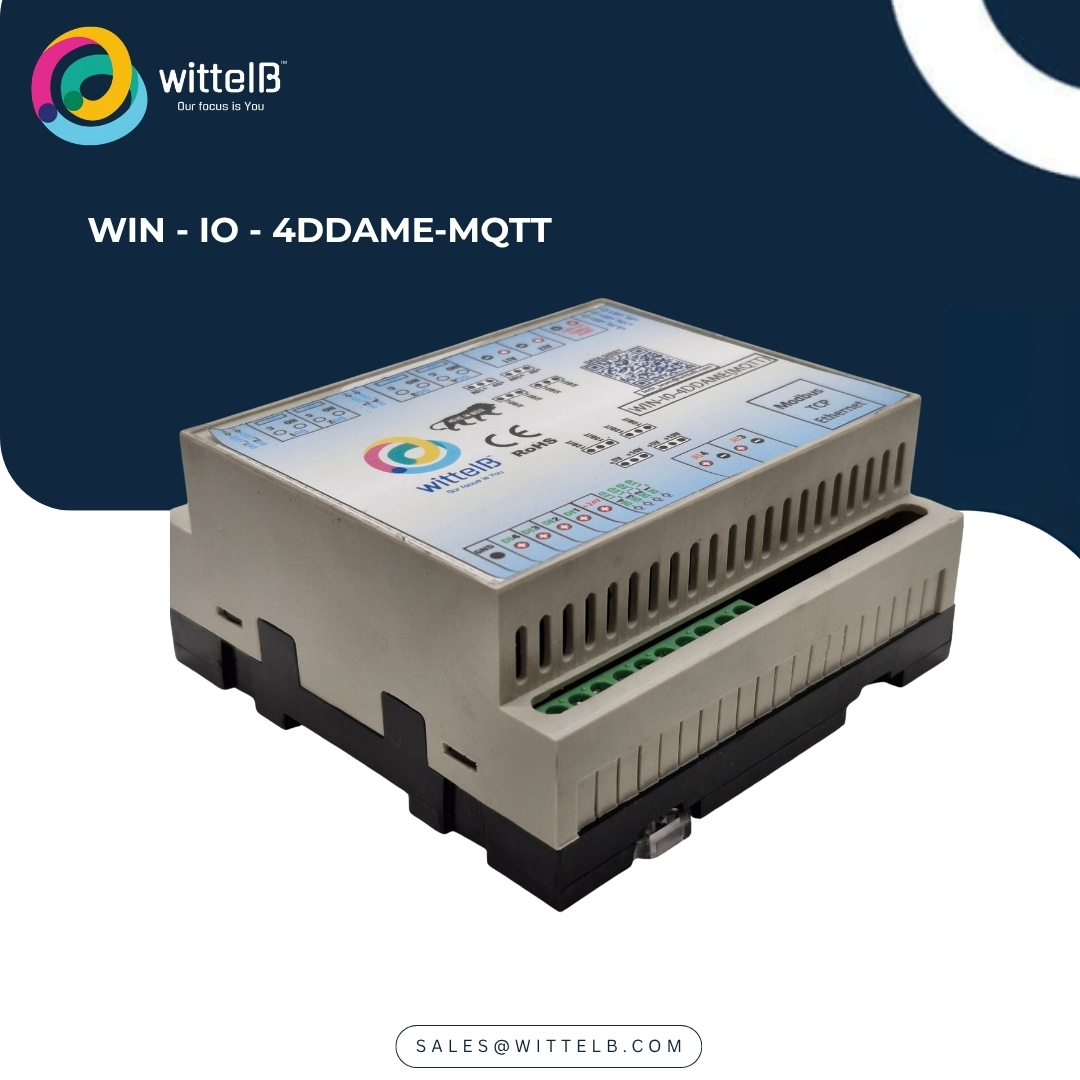

IO Module – Product Code WIN-IO-4DDAME-MQTT

IO Module with 4 Port Digital Input, 4 Port Digital Output, 4 Port Analog Inout with TCP ETHERNET MQTT
Input Power Source – 12-24 V DC
Enclosure – DIN Rail Mountable – 110mm x 110mm x 50mm
WEB UI Based Configuration
DI – (4-40V DC) / The DI can be configured as Frequency Counter (Upto 5 Khz) – On Request
DO – Relay (10A 230V AC)
AI – 4-20ma / 0-10v Default Setting is 10bit (12 bit on request)
CE Certified
Warranty – 1 Year Comprehensive warranty
