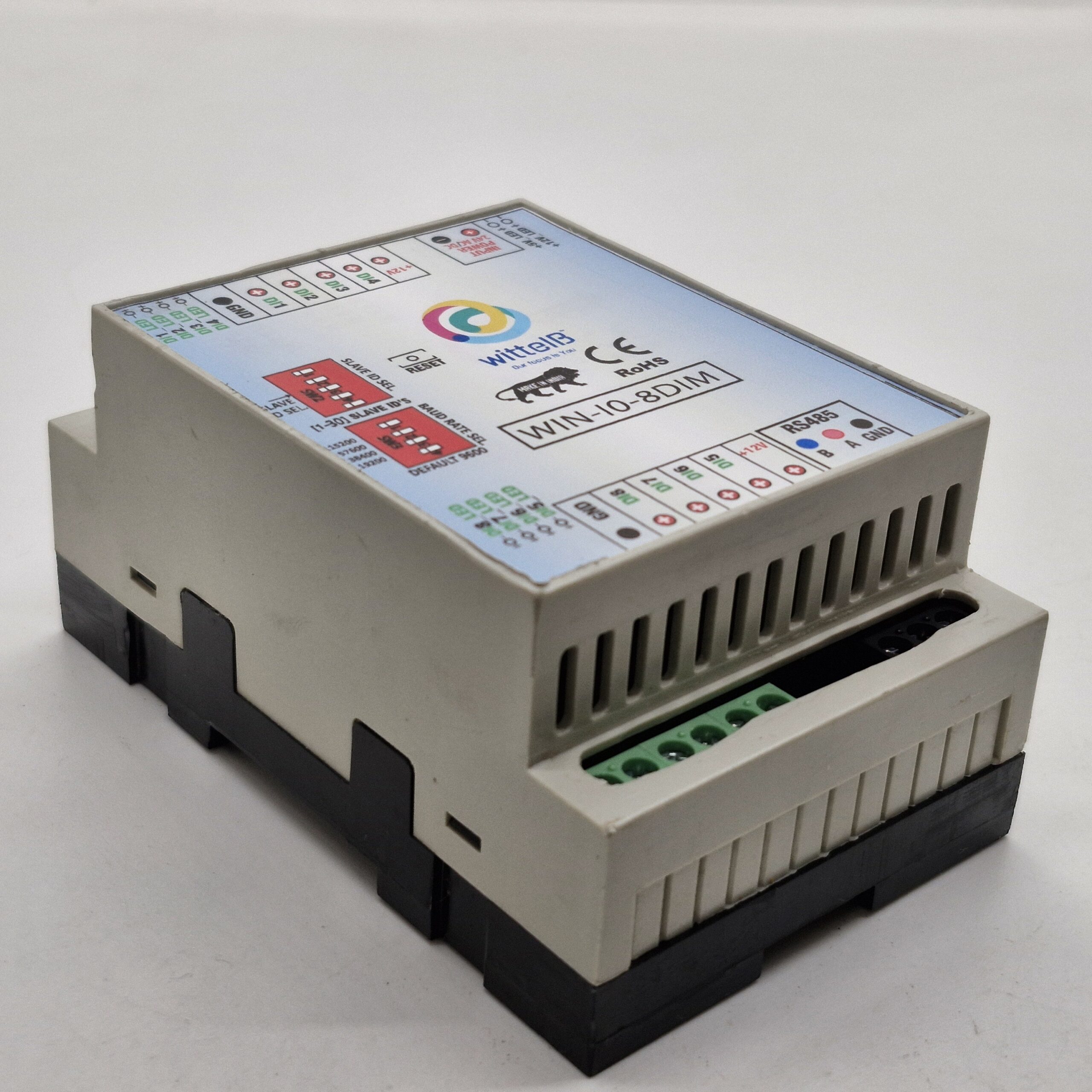

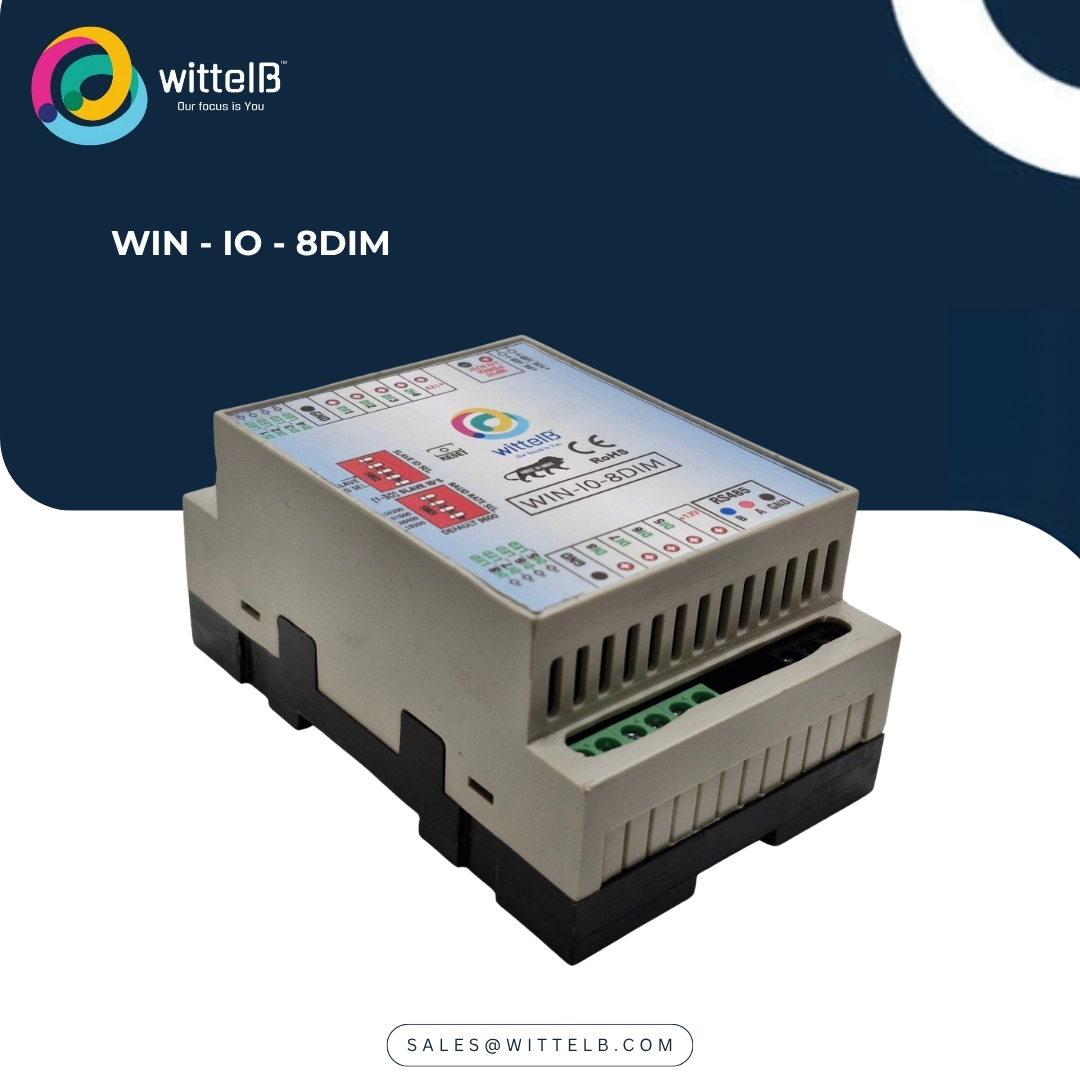

IO Module – Product Code WIN-IO-8DIM

IO Module with 8 Port Digital Input (4 – 40V) with Modbus RTU RS485.
Input Power Source – 24 V AC/DC
Enclosure – DIN Rail Mountable – 110mm x 70mm x 50mm
Default – DIP Switch Setting (1 – 15 Addresses) & Baud Rate (9600 – 115200)
Optional – Soft Setting – (1 -254 Addresses), Baud Rate(9600 – 115200), Parity (Even, Odd, None)
Digital Input – (4-40V DC) / The DI can be configured As Frequency Counter (Upto 5Khz) (On request)
CE Certified
Warranty – 1 Year Comprehensive warranty
