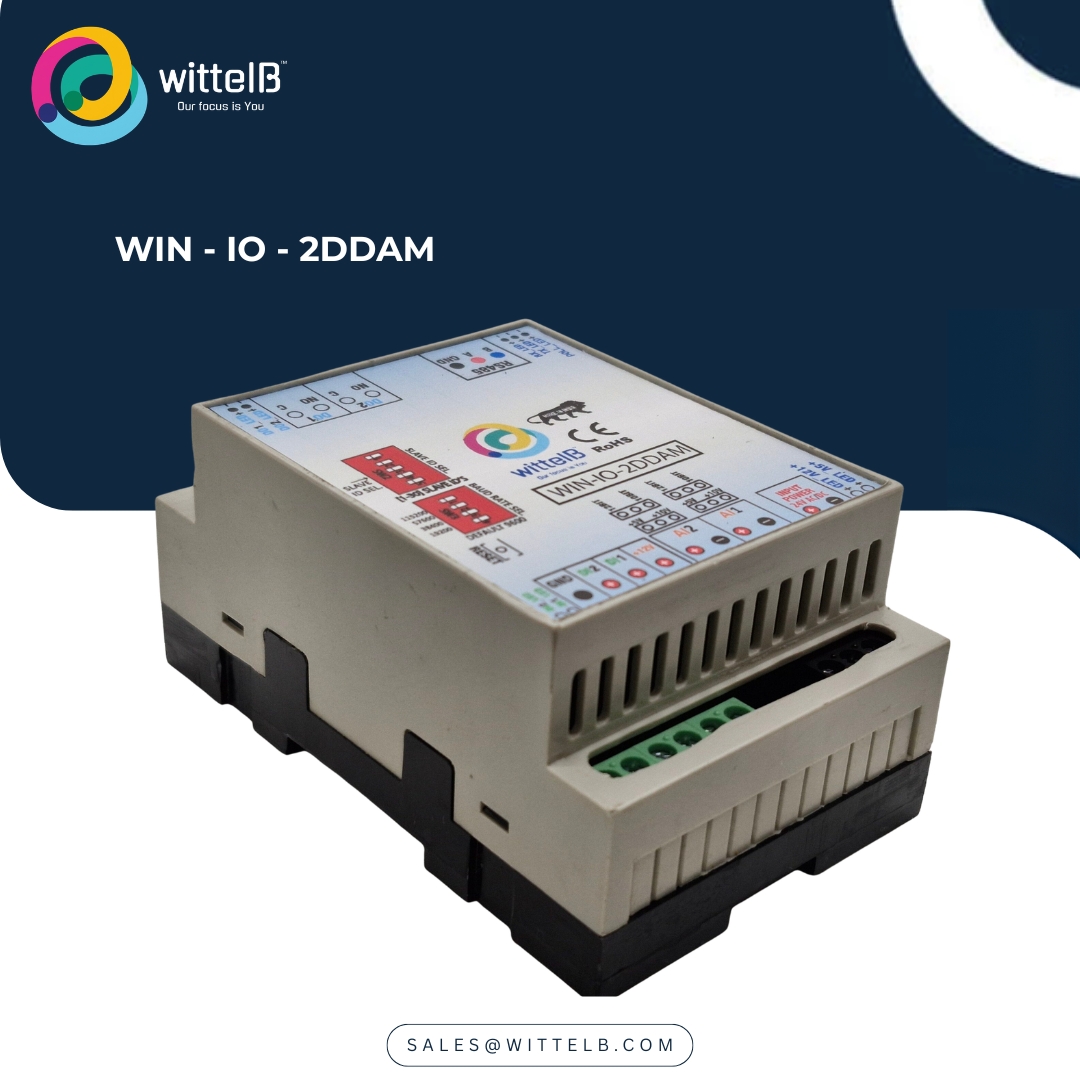

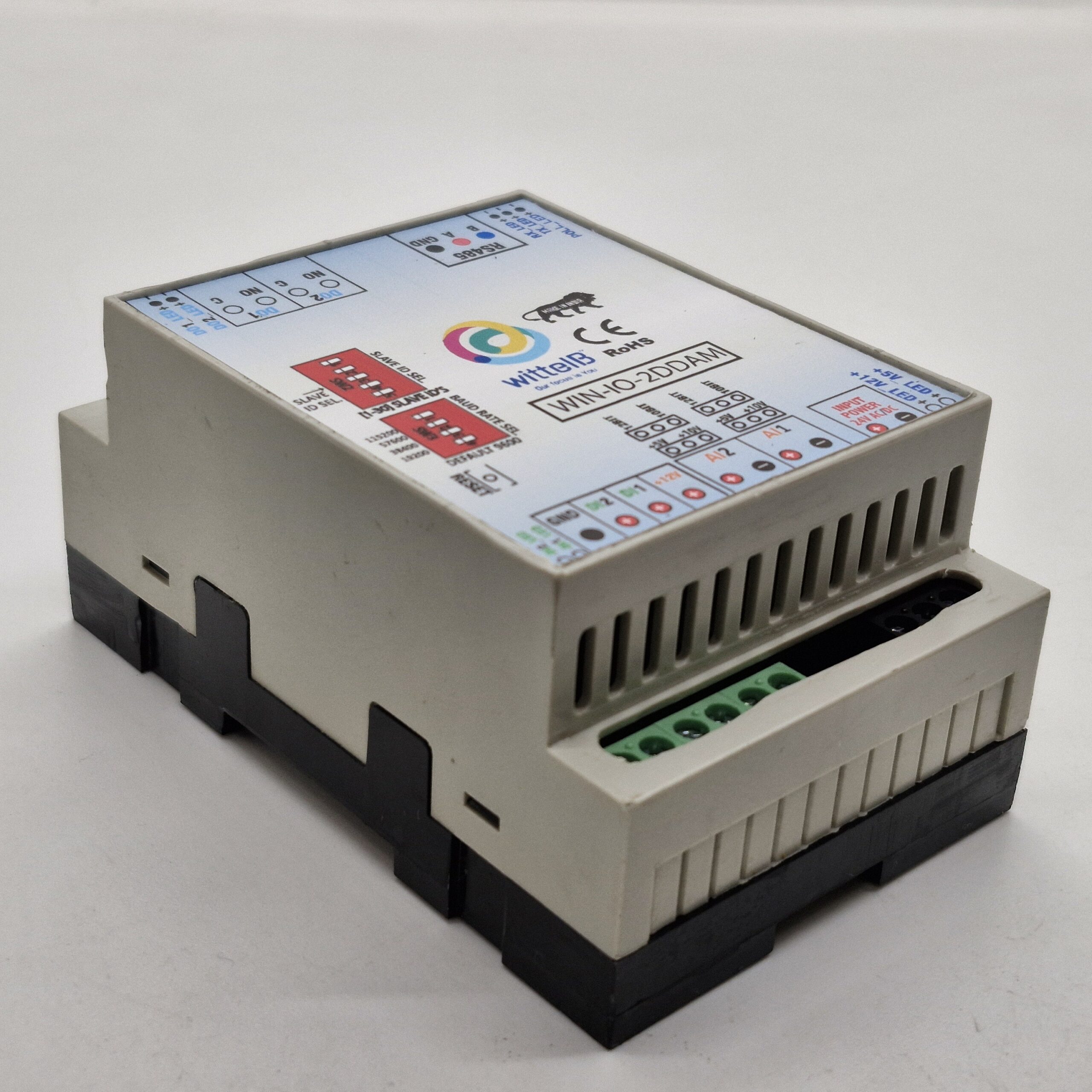

IO Module – Product Code WIN-IO-2DDAM

IO Module with 1 Port Digital Input, 2 Port Digital Output, 2 Port Analog Inout with Modbus RTU RS485.
Input Power Source – 24 V AC/DC
Enclosure – DIN Rail Mountable – 110mm x 70mm x 50mm
Default – DIP Switch Setting (1 – 15 Addresses) & Baud Rate (9600 – 115200)
Optional – Soft Setting – (1 -254 Addresses), Baud Rate(9600 – 115200), Parity (Even, Odd, None)
DI – 4-40V
DO – Relay 10A 230V AC
AI – 4-20ma / 0-10v Default Setting is 10bit (12 bit on request)
CE Certified
Warranty – 1 Year Comprehensive warranty
