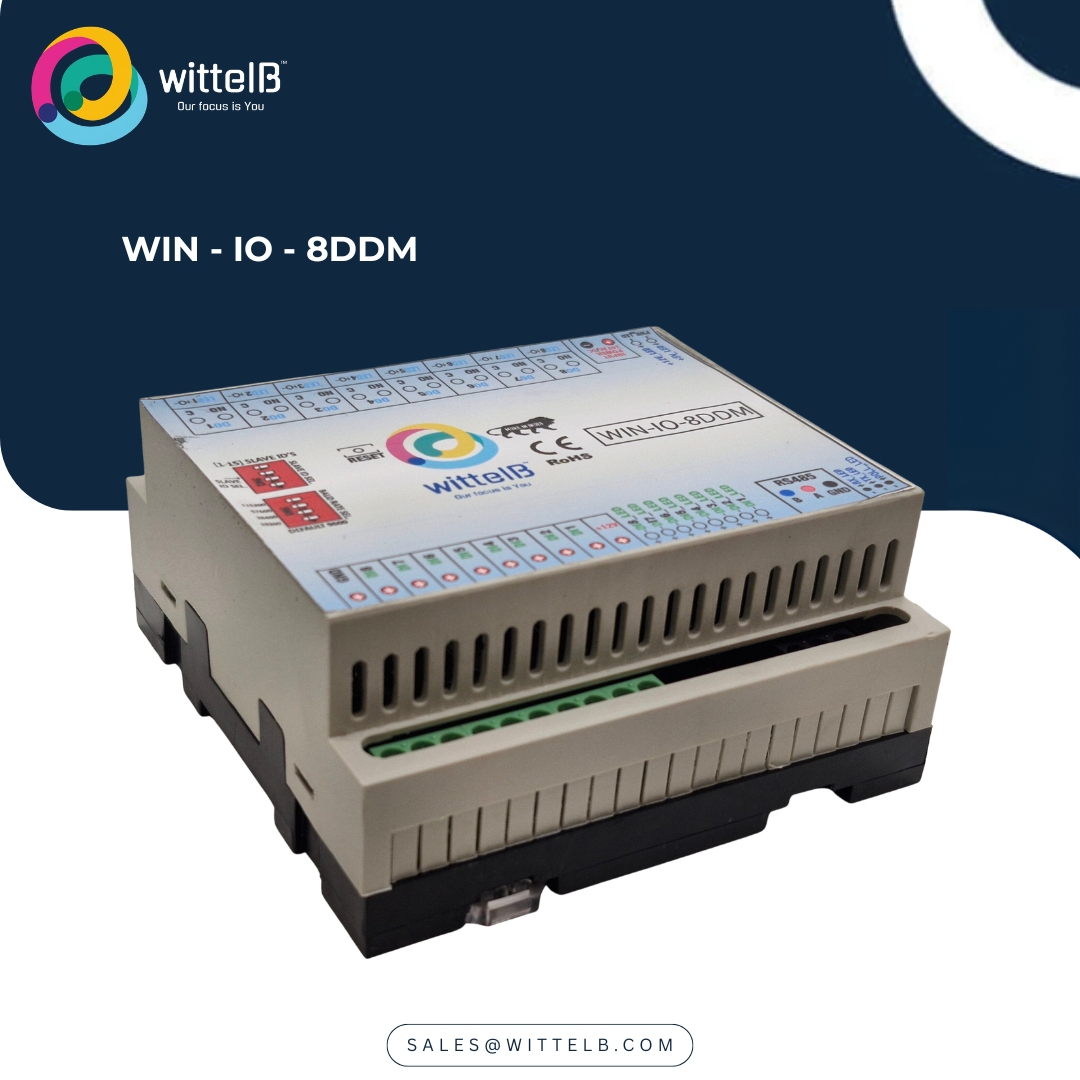

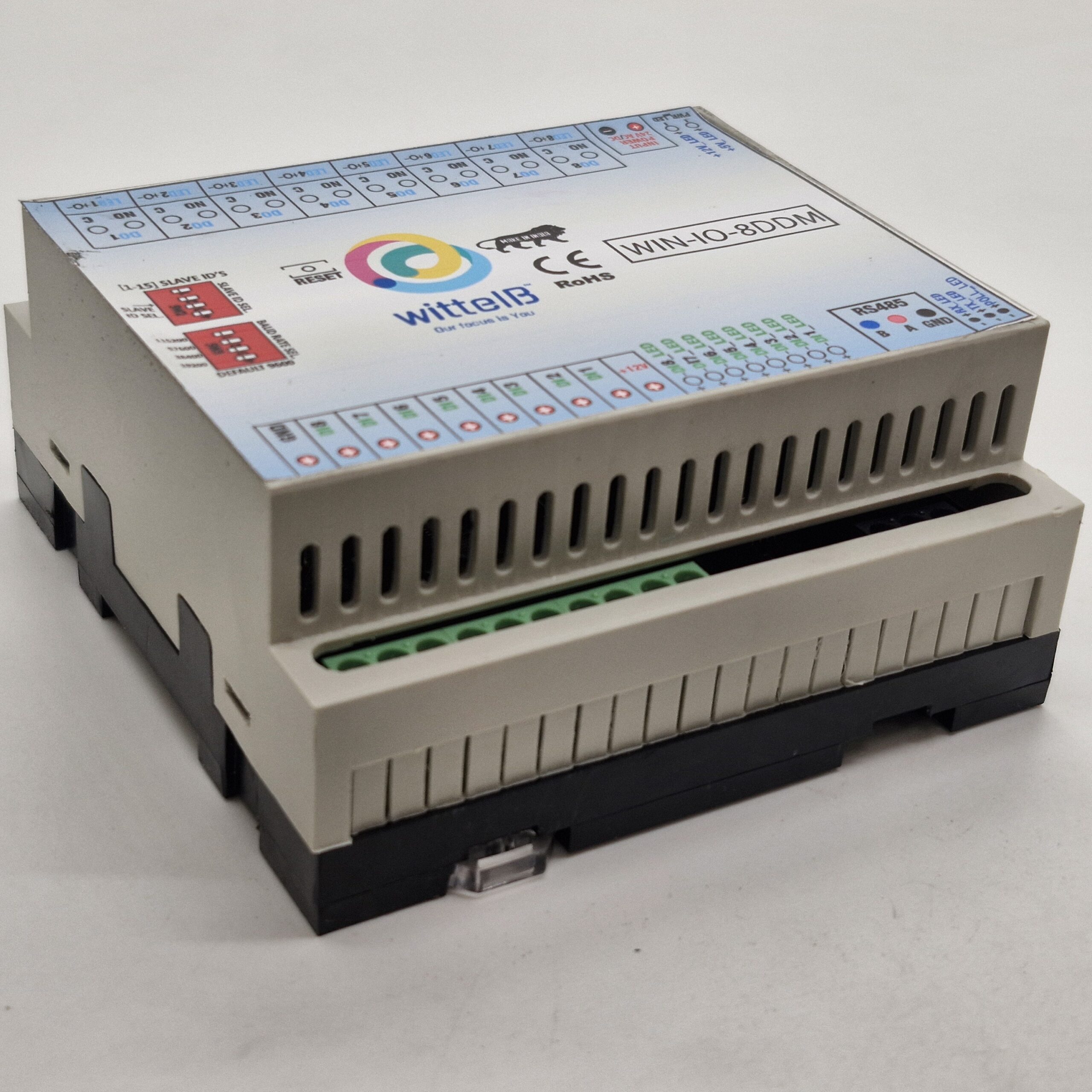

IO Module – Product Code WIN-IO-8DDM

IO Module with 8 Port Digital Input, 8 Port Digital Output with Modbus RTU RS485.
Input Power Source – 24 V AC/DC
Enclosure – DIN Rail Mountable – 110mm x 110mm x 50mm
Default – DIP Switch Setting (1 – 15 Addresses) & Baud Rate (9600 – 115200)
Optional – Soft Setting – (1 -254 Addresses), Baud Rate(9600 – 115200), Parity (Even, Odd, None)
Digital Input – 4-40V DC / The DI can be configured as Frequency Counter (Upto 5Khz) (On Request)
Digital Output – Relay 10A 230V AC
CE Certified
Warranty – 1 Year Comprehensive warranty
