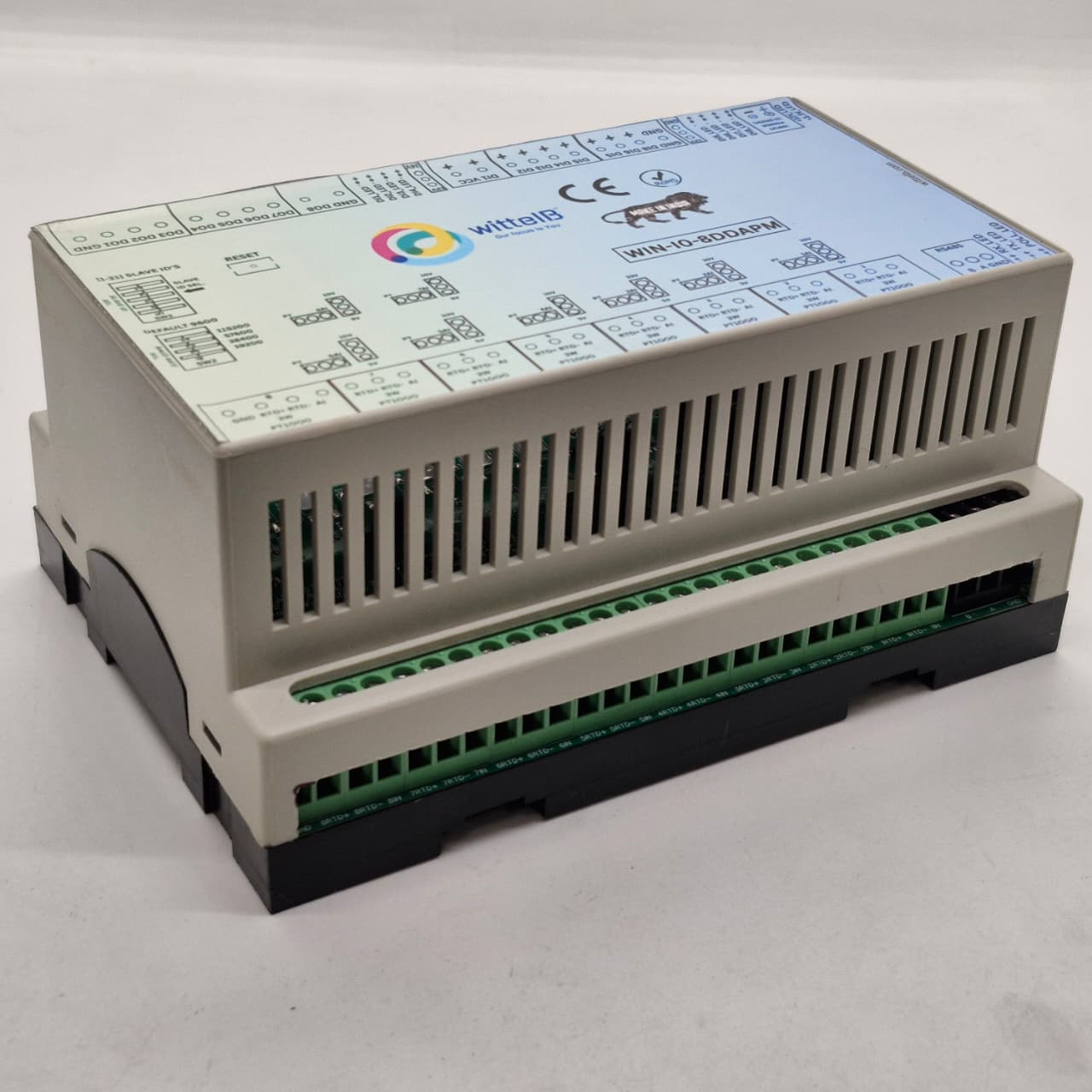

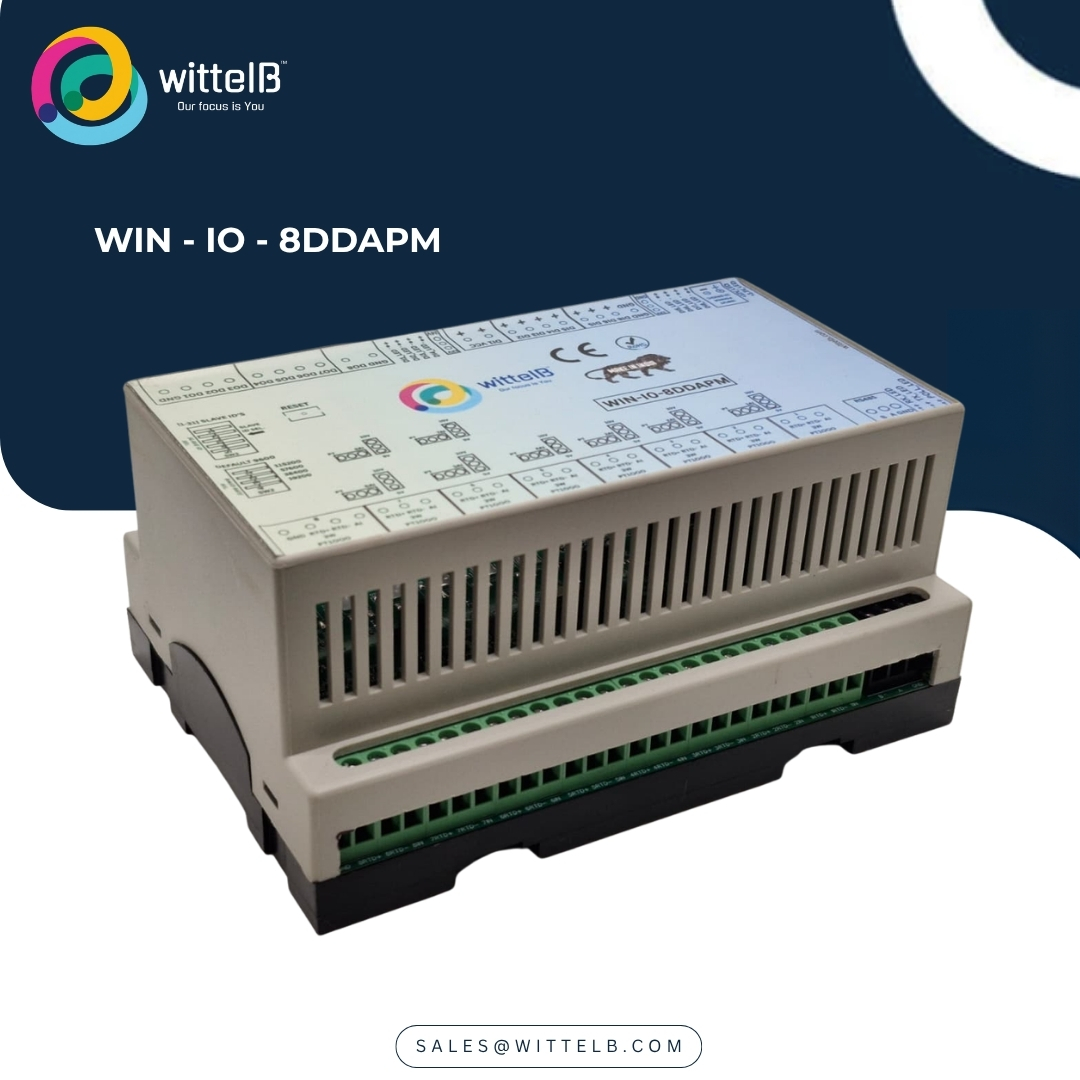

IO Module – Product Code WIN-IO-8DDAPM

IO Module with 8 Port Digital Input, 8 Port Digital Output, 8 Port Analog Input / PT100 with Modbus RTU RS485.
Input Power Source – 24 V AC/DC
Enclosure – DIN Rail Mountable – 155mm x 110mm x 50mm
Default – DIP Switch Setting (1 – 15 Addresses) & Baud Rate (9600 – 115200)
Optional – Soft Setting – (1 -254 Addresses), Baud Rate(9600 – 115200), Parity (Even, Odd, None)
DI – 4-40V DC
DO – Relay 10A 230V AC
AI – 4-20ma (10Bit Resolution / PT100 (2 & 3 Wire)
CE Certified
Warranty – 1 Year Comprehensive warranty
