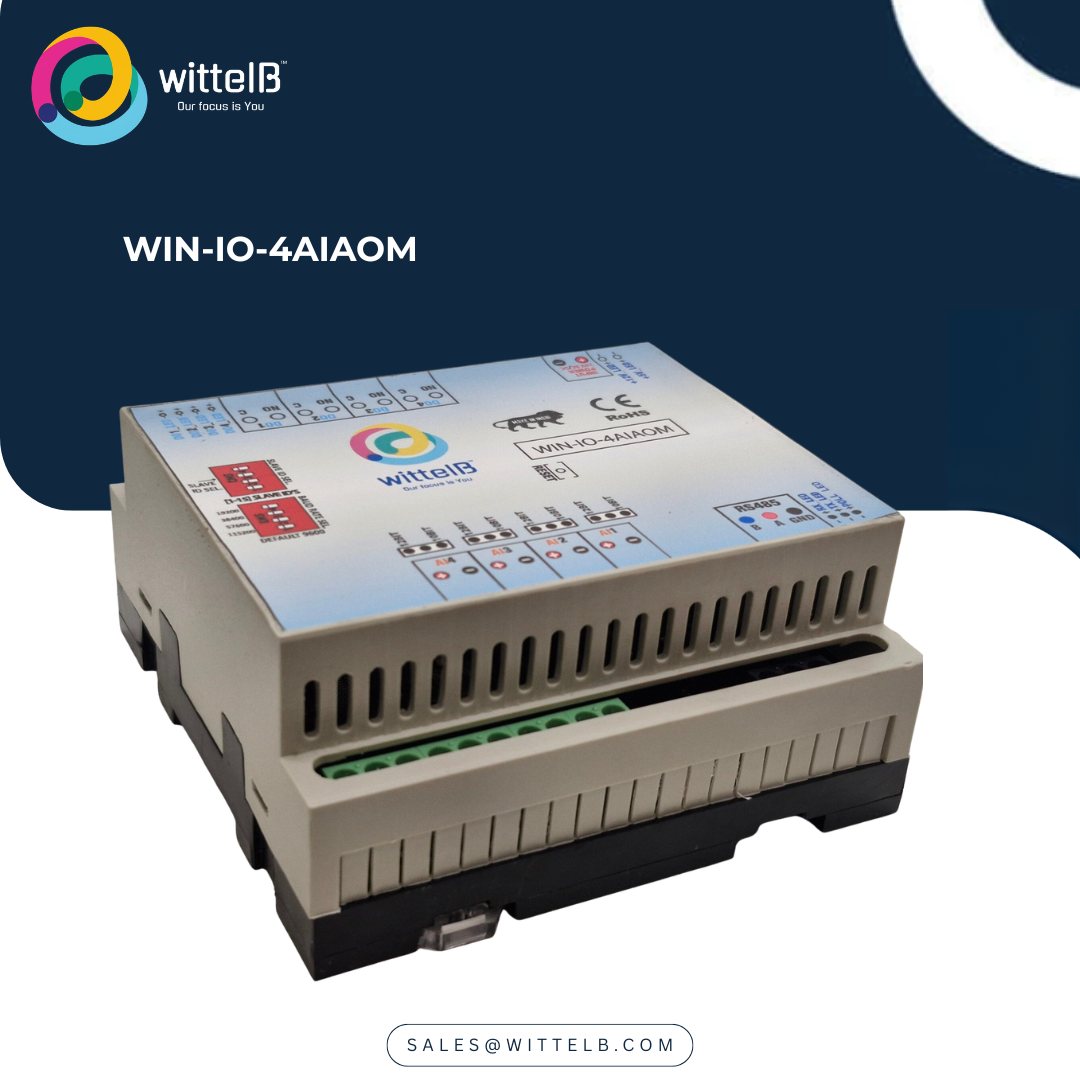

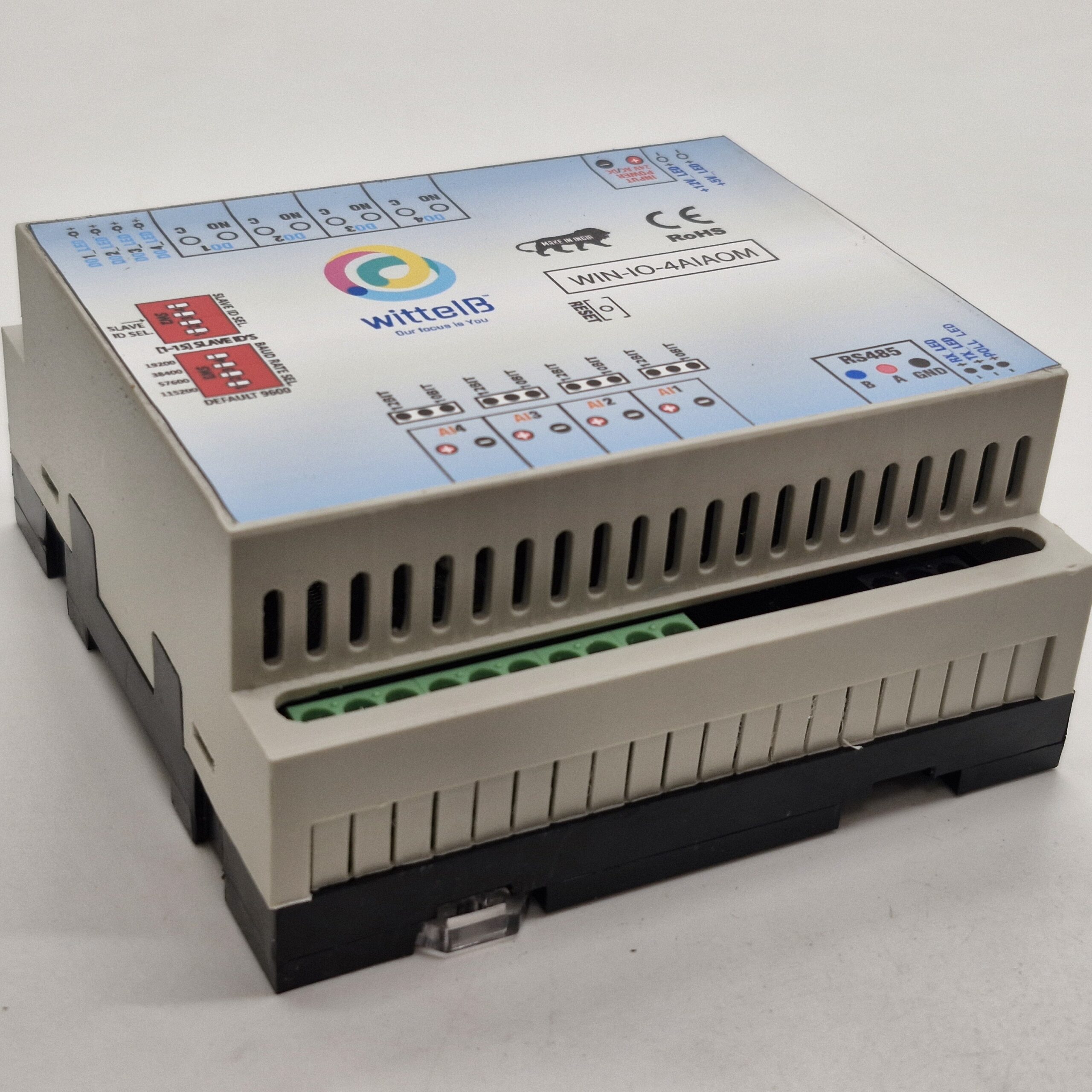

IO Module – Product Code WIN-IO-4AIAOM

IO Module with 4 Port Analog Input, 4 Port Analog Output with Modbus RTU RS485.
Input Power Source – 24 V AC/DC
Enclosure – DIN Rail Mountable – 110mm x 70mm x 50mm
Default – DIP Switch Setting (1 – 15 Addresses) & Baud Rate (9600 – 115200)
Optional – Soft Setting – (1 -254 Addresses), Baud Rate(9600 – 115200), Parity (Even, Odd, None)
Analog Input – 4-20ma / 0-10V Default Setting is 10bit (12 bit on request)
Analog Output- 4-20ma / 0-10V Default Setting is 10bit (12 bit on request)
CE Certified
Warranty – 1 Year Comprehensive warranty
