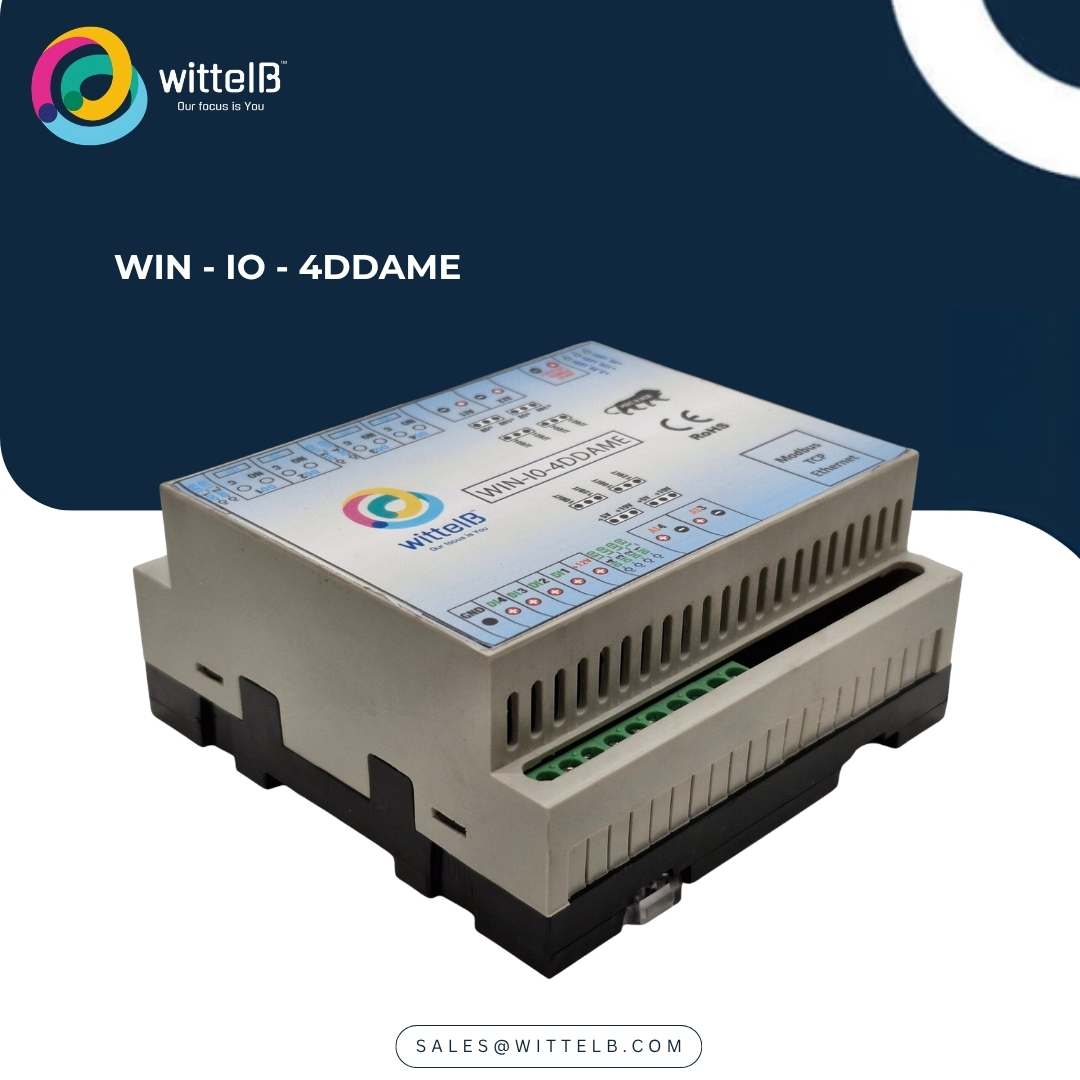

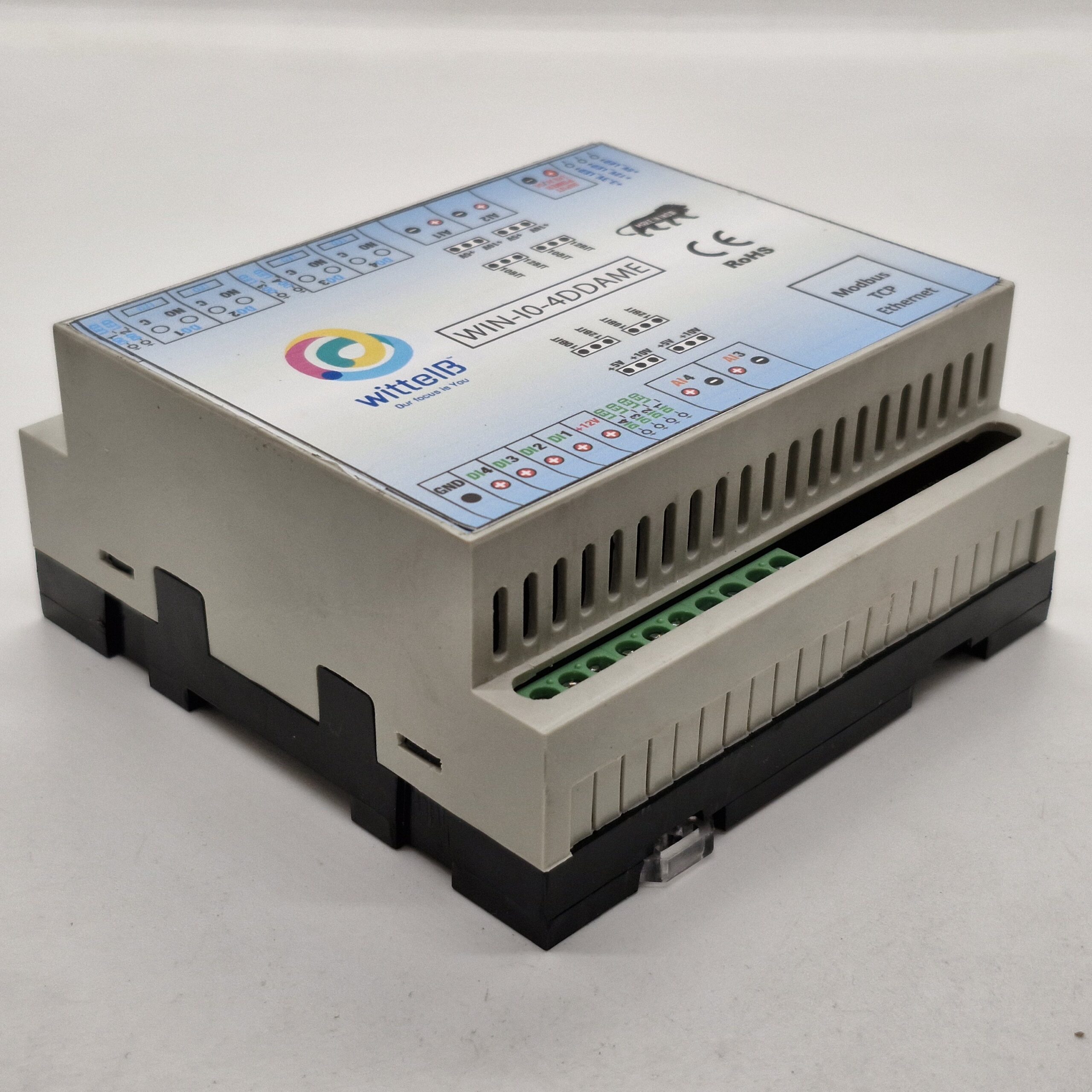

IO Module – Product Code WIN-IO-4DDAME

IO Module with 4 Port Digital Input, 4 Port Digital Output, 4 Port Analog Inout with Modbus TCP ETHERNET
Input Power Source – 24 V AC/DC
Enclosure – DIN Rail Mountable – 110mm x 110mm x 50mm
WEB UI Based Configuration
DI – 4-40V DC / The DI can be configured as Frequency Counter (Upto 5Khz) (On Request)
DO – Relay 10A 230V AC
AI – 4-20ma / 0-10v Default Setting is 10bit (12 bit on request)
CE Certified
Warranty – 1 Year Comprehensive warranty
