WIN-MDS-W5500-V2.0

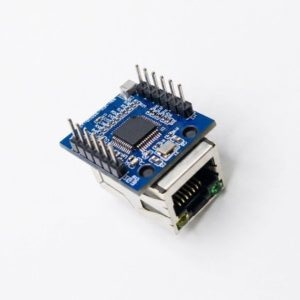

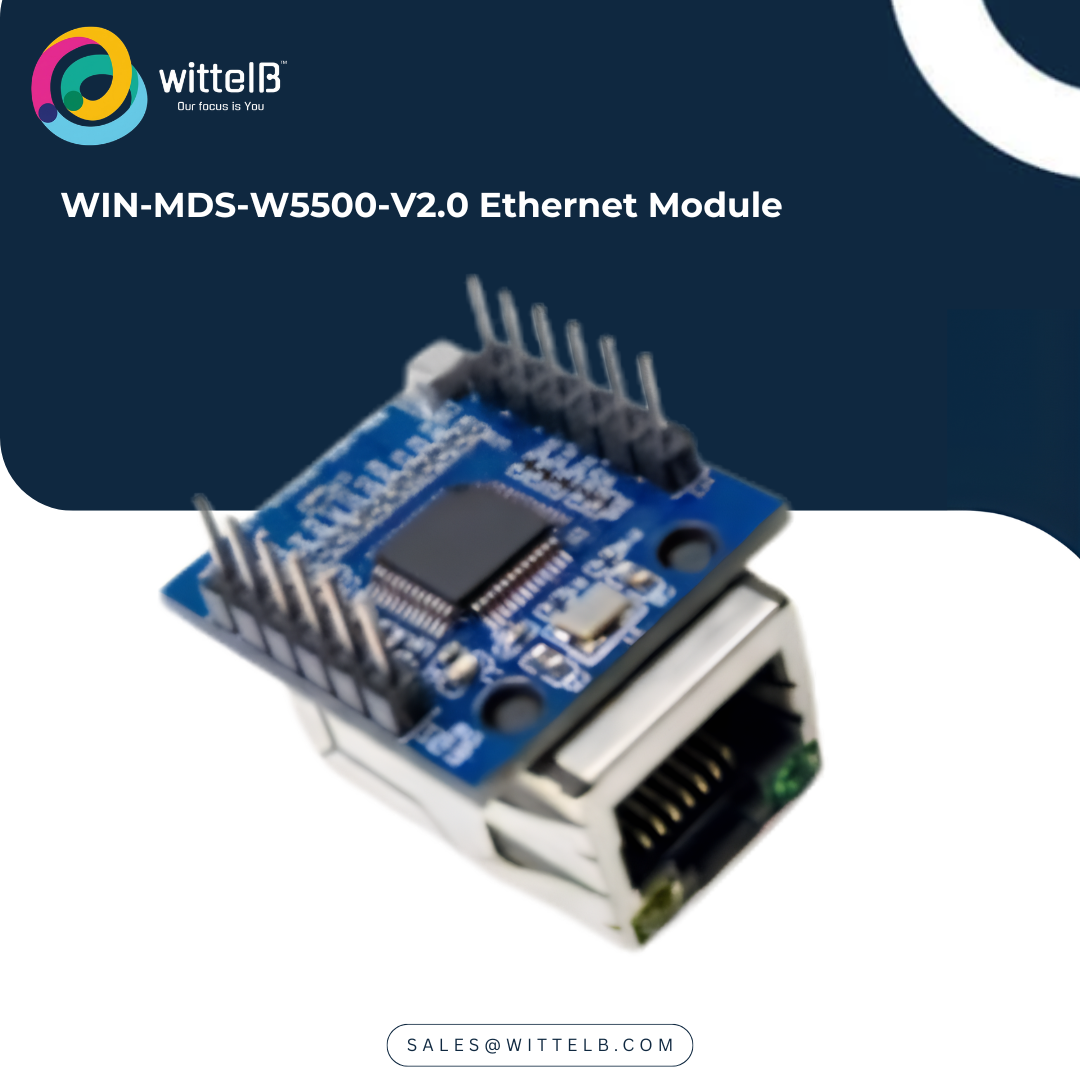

Product Overview: WIN-MDS-W5500-V2.0 Ethernet Module

The WIN-MDS-W5500-V2.0 by Augmatic Technologies is a compact, high-performance Ethernet solution designed for seamless network integration. Powered by the W5500 chipset, it features a hardwired TCP/IP stack that offloads network processing from the host MCU, significantly reducing firmware complexity and enhancing system stability.

Key Features

High-Speed Connectivity: Supports 10/100 Mbps Ethernet via a robust RJ45 connector with integrated magnetics and status LEDs.
Efficient Interface: Utilizes a high-speed SPI interface, making it compatible with a wide range of controllers like Arduino, ESP32, and STM32.
Multi-Socket Support: Capable of handling up to 8 simultaneous socket connections.
Industrial Ready: Compact PCB design ( $28.3 \text{ mm} \times 55.4 \text{ mm}$ ) with optimized power decoupling and signal integrity for reliable operation in diverse environments.

Technical Specifications

Feature	Specification
Interface	SPI (Serial Peripheral Interface)
Ethernet	10/100 Mbps, RJ45 with Integrated Magnetics
I/O Connector	2 × 5 Pin Header (2.54 mm Pitch)
Power Supply	Dual Compatibility: 5V DC / 3.3V DC
Dimensions	28.3 mm (L) × 55.4 mm (W)
