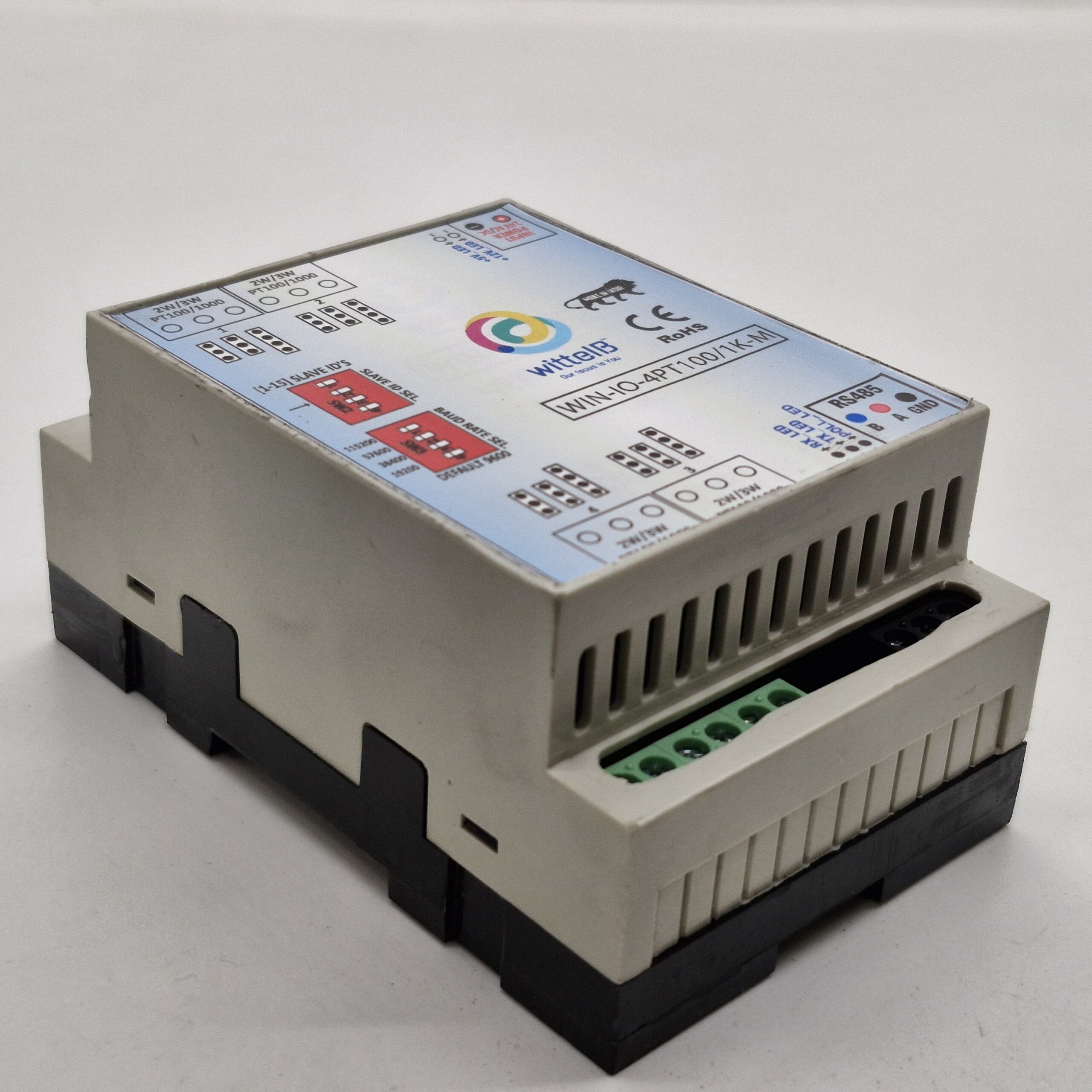

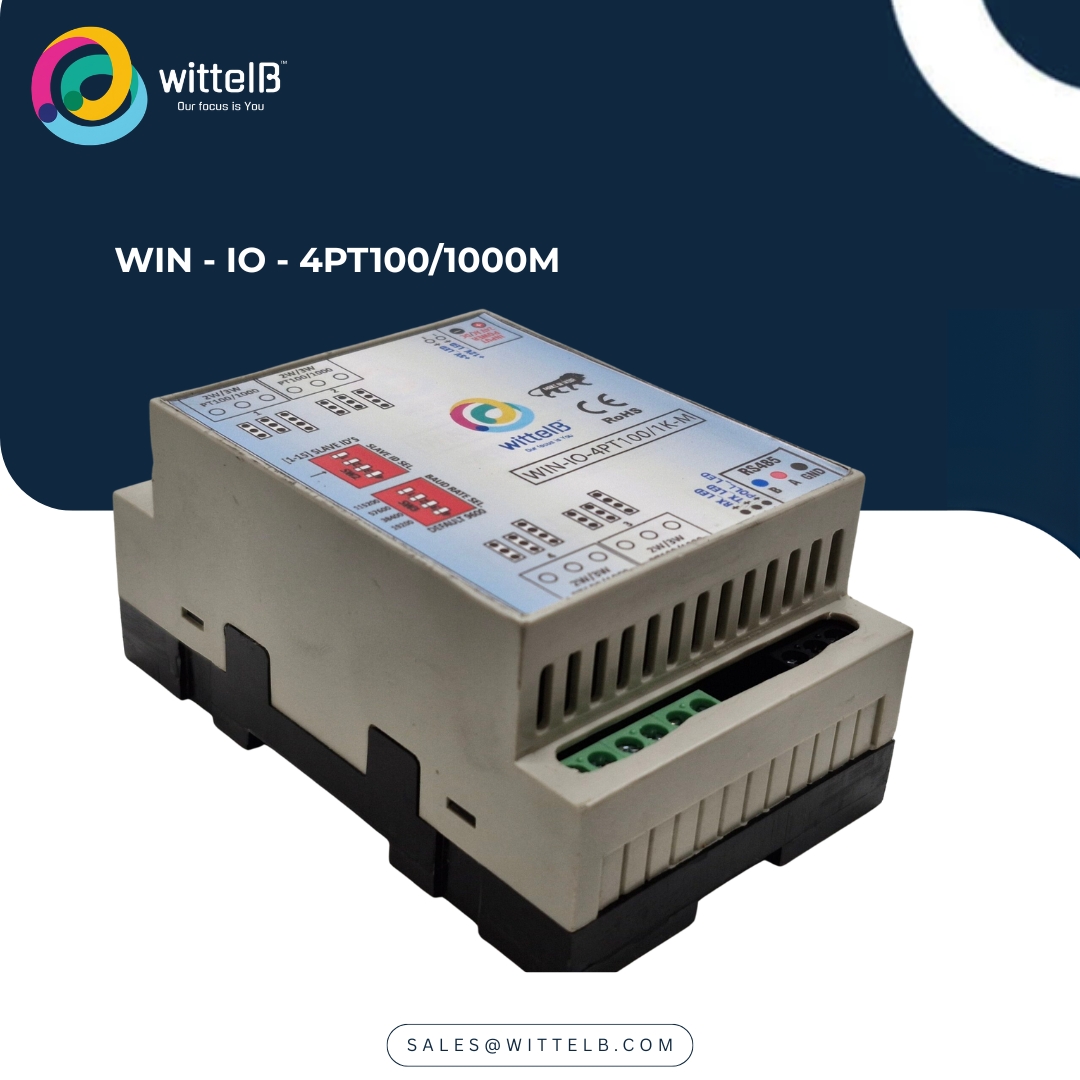

IO Module – Product Code WIN-IO-4PT100/PT1000M

Description

IO Module with 4 Port PT100 / PT1000 (Jumper selectable) with Modbus RTU RS485.
Input Power Source – 24 V AC/DC
Enclosure – DIN Rail Mountable – 110mm x 70mm x 50mm
Default – DIP Switch Setting (1 – 15 Addresses) & Baud Rate (9600 – 115200)
Optional – Soft Setting – (1 -254 Addresses), Baud Rate(9600 – 115200), Parity (Even, Odd, None)
Default Setting is PT100 (Jumper selectable for PT1000)
Compatible for 2 Wire and 3 Wire Sensors
CE Certified
Warranty – 1 Year Comprehensive warranty

Dimensions	110 × 110 × 50 cm
