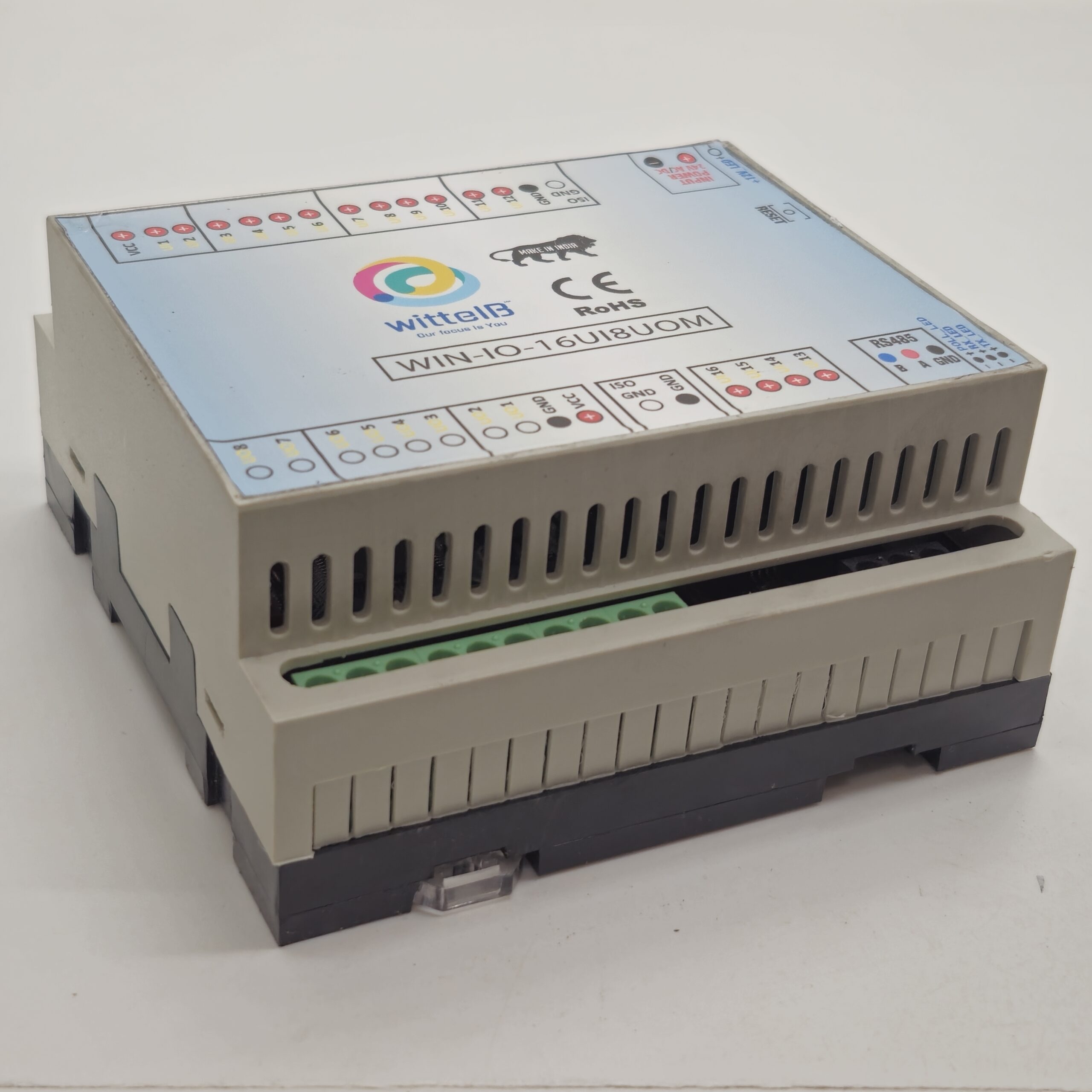

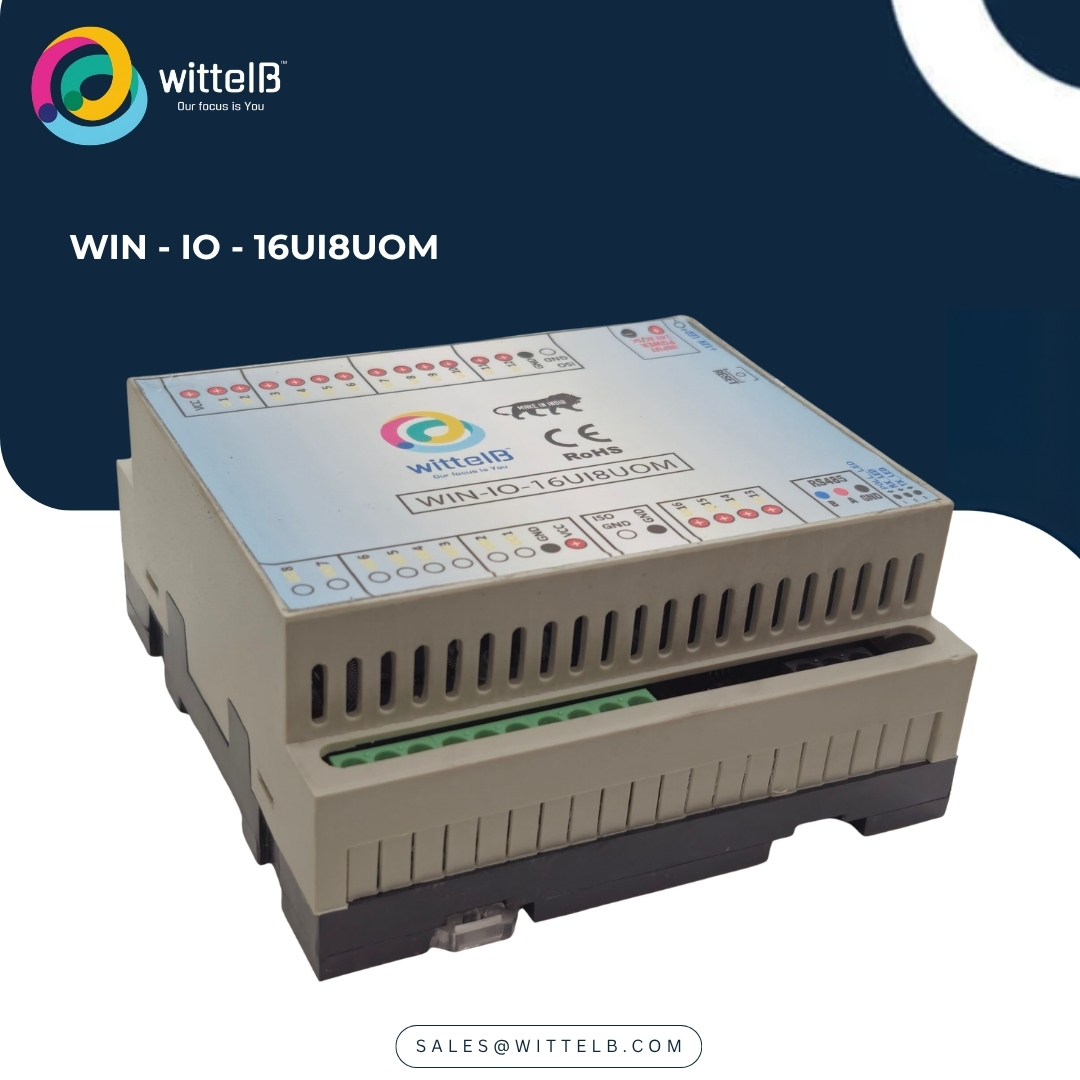

IO Module – Product Code WIN-IO-16UI8UOM

IO Module with 16 Port Universal Input, 8 Port Universal Output with Modbus RTU RS485.
Input Power Source – 24 V AC/DC
Enclosure – DIN Rail Mountable – 110mm x 110mm x 50mm
Optional – Soft Setting – (1 -254 Addresses), Baud Rate(9600 – 115200), Parity (Even, Odd, None)
Universal Input – (DI – 4-40V DC) or (AI – 4-20ma/0-10v)
Universal Output – (DO – MOSFET) or (AO – 4-20ma/0-10v)
Selectable via registers in blocks of 4
AI – 4-20ma / 0-10v Default Setting is 10bit (12 bit on request)
CE Certified
Warranty – 1 Year Comprehensive warranty
